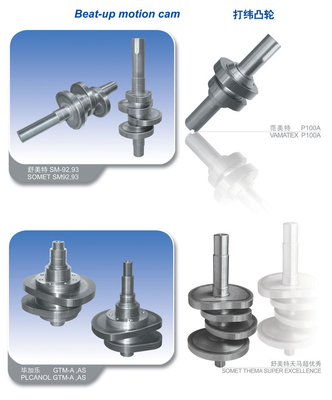

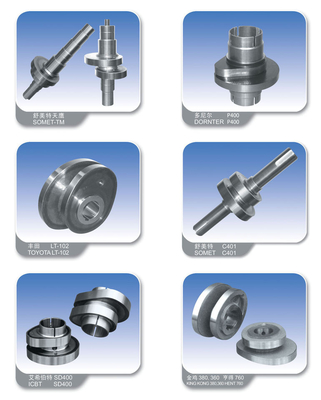

Beat-Up Motion Loom Cam For Various Brand SOMAT, PLCANOL GTM, ICBT, TOYOTA, DORNTER

Beat-Up Motion Loom Cam For Various Brand SOMAT, PLCANOL GTM, ICBT, TOYOTA, DORNTER

Description:

Drawing on advantages of high-and-new technology home and abroad, incorporating collective wisdom of large numbers of technicians, scientifically managing and elaborately designing and manufacturing, all this makes our leading products-slave cam widely used in textile, print, automobile and other industries, especially in textile machinery. All types of cam products made in our company can be available for use in rapier looms, water jet looms, air jet looms and gripper shuttle looms, and have been always highly spoken of by our customers.

1.First-class Quality,first-class Technology
2.One Year Guaranty
3.World-class after-sales service
4.Quick delivery

Based on the HCH series model, the structure is more sturdy, it can realize high-speedsteady operation. Plain shedding device and single pump two nozzle electronicmeasuring and storage system are optional parts for the unit.
The HCH 408 is designed for high-speed, high efficiency and wider workable range of fabrics.
Within a larger workable range of yarns,
it can weave two kinds of distinctly different yarns at the same time,
greatly enhancing the added value of fabric



Specifications:

1) Reed width: 50,170,190 ,210,230, 260,280, 330, 340cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:a) Plain shedding: 8pcs max.b) Dobby shedding: 16pcs max.
4) Power: 2.2,2.8, 3.5, 4.5kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.
7)ETU-ELO is optional



Yarn:

1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament

9) O.P. yarn
10) Taslon yarn
