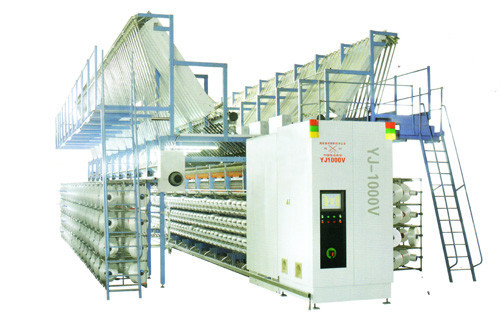

MODEL RL1000V - 240 / 264 / 288 HIGH SPEED ELECTRON - CONTROLLED DRAW - TEXTURING MACHINE
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Warp Knitting Machine,digital printing machine |
||
|---|---|---|---|
MODEL RL1000V - 240 / 264 / 288 HIGH SPEED ELECTRON - CONTROLLED DRAW - TEXTURING MACHINE
Main Datas
|
Spindle number |
240spindles (standard), 264spindles,288spindles |
|
Max. mechanical speed |
1000m/min (W2 feed roll speed) |
|
Twister |
Type 8 disc friction unit |
|
First heater |
Biphenyl/2000mm |
|
Second heater |
Bipheny/1460mm |
|
Cooling rail length |
1100mm |
|
Diameter of take-up roll |
Φ100mm |
|
Diameter of feed roll |
Φ75mm |
|
Diameter of oiling roll |
Φ75mm |
|
Distance of both spindles |
110mm |
|
Pitch |
1440mm |
|
Denier of fiber |
55 - 250 dtex |
|
Package of take - up |
Φ250×250mm |
|
Overall size |
18780×6724×5250(Fixed creel) |
|
power Whole power |
200.5KW |
|
Effective power |
90.5KW |
Use
This machine is used to make the polyester fiber and polypropylene fiber to be low, middle and high stretch fiber through tw1ster. If equipped with intermingle nozzle, this machine can make intermingle fiber.
Feature
1.The first heater (deforming heater) and the second heater ( setting heater) adopt biphenyl air heating. The computer controls the heating and temperature control. The precision of temperature control is +1C, assure every spindle s temperature to be almost same. This is beneficial for even dying. 2.The machine has the features of simple structure, reliable transmission ratio, low noise level and easy technological adjustment. 3.The advanced designed electrical control system makes the operation simple, running reliable. Man -machine interaction can be realized by touching screen. 4.Two sides of this machine are relatively independent. The technology can be set separately. Different types and denier texturing yarn can be processed at the same time.
|
1. Creel 2. POY yarn 3. Yarn Cutter 4. W1 roll 5.Up-heater 6. String-up 7.Cooling rail 8.Friction unit 9. W2 roll 10. Lower heater 11. Interlacing jet 12. W3 roll 13. Oiling roll 14.Yarn Sensor 15.Take-up 16.Cam shaft 17. Exhaut 18.Operator trolley.
|
