Medium - speed Textile Industry Machinery / Control Flexible Fabrics Rapier Loom
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

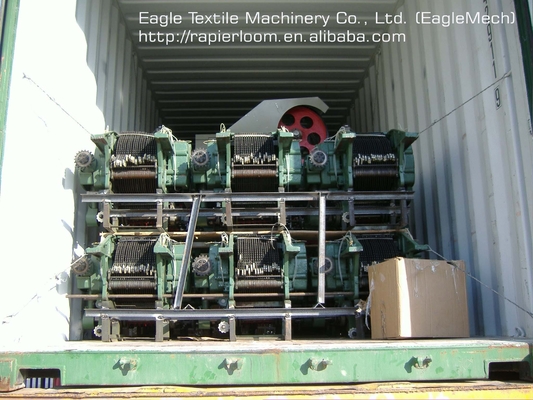

| Delivery Time: | 20-35days | Package: | Standard Export Packing |
|---|---|---|---|
| Design Speed: | 160~250rpm | Reed Width (cm): | 150,180, 200, 230, 280, 330. |
| Model Number: | GA798 Flexible Fabrics Rapier Loom | Warp Beam Dia.: | Standard 600mm |
| Brand: | RUNLAI | ||
| High Light: | Warp Knitting Machine,polyester screen |
||

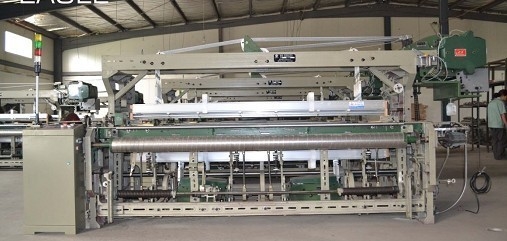

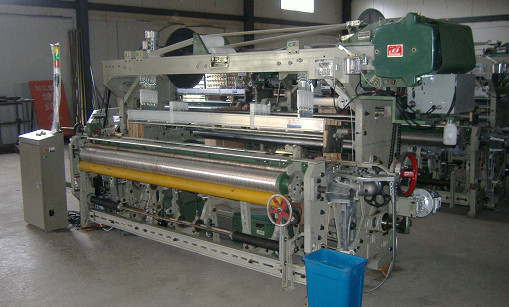

Medium - speed Textile Industry Machinery Humanized Control Flexible Fabrics Rapier Loom
Features Humanized control and operation system
With materials of cotton fiber, natural fiber, artificial fiber and decorative yarn (e.g.cotton, polyester, silk, wool, acrylic, rayons, nylon and fancy yarns), GA798 Flexible Fabrics Rapier Loom is mainly used to weave them into light, medium and heavy plain satin checks fabrics of 20-800g/sqm, such as decoration cloth, window screen, colorful cloths, flax cloth, cotton cloth, chemical fibre cloth, suitings and shirting fabrics etc. In addition, we achieved varied weft density weaving, and weft density is controllable 5~46 picks/cm.Stable operation and easy maintenance, low noise, beautiful exterior, humanized control and operation system, fast reactive permanent super motor with low power consumption, good comprehensive performance ensure the safety and stabilization of the system.
Model Number GA798 Flexible Fabrics Rapier Loom
Reed width (cm) 150,180, 200, 230, 280, 330.
Rotation speed Design speed 160~250rpm.
Weft insertion 160-180m/min by left and right flexible rapier band & head.
Warp beam dia. Standard 600mm.
Cloth roll dia. 300mm, can match with big rolling cloth mechanism.
Weft feeder FDP electronic weft accumulator.
Driving control Rated 0.8~1.3kw main motor power, 3-phase line, 380v, 50hz; Electro-magnetic clutch brake unit.
Beat-up motion Crankshaft weft insertion and beating-up.
Lubrication Oiling pump, automatic oil for dobby.
Electric circuit Standard modularization design, LED displays working condition.
Weft selection 4-6 colour driven by mechanical dobby weft selector.
Yarn range Spun yarns: 500tex (1.2Ne)~5tex (120Ne).
Filament yarns: 10dte(9td)~1650dte(1500Td).
Shedding motion 8-12 pieces heddle frame, mechanical dobby with max. 20 shafts automatic shedding type, can match with big jacquard.
Let-off motion Semi positive type mechanical let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.
Take-up motion Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.
Selvage device Mechanical selvage cutter, Leno selvedge.
Temple: ring type copper cylinder with pin.
Stop motion Warp yarn: separate electric automatic warp stop motions; Weft yarn: high-sensitivity piezoelectricity detector control automatic stop. Stop display: 4-colour multi-function indication lamps.
Electronic control Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.
Size and weight:450*250*260cm, 1.8~2.0 MTs.
Technical Specifications
Reed width (cm) 150,180, 200, 230, 280, 330.
Design speed 160~250rpm
Dobby mechanical dobby, 20 shafts
Warp beam Dia. Standard 600mm
Size and weight 450*250*260cm, 1.8~2.0 MTs
Motor power 1.5~2.2kw
Features This loom is specially designed to weave plain satin checks fabrics, widely used for suitings and shirting fabrics. Suitable fabrics weight range is 20-800g/sqm.
